PVC Window Components
We offer a range of PVC jambs, brickmolds, casing, channels, and other finishing components to suit new construction, replacement windows, box units, basement installations, and custom wall depths.
Standard PVC Jamb Options
Choose the jamb option that best matches your wall depth and installation method:
| Jamb Option | Typical Application |
|---|---|
| 1/2″ Board Return | Ideal when building your own jamb or finishing the opening with drywall, plywood, wood, or another material |
| 3/4″ Board Return | Ideal when building your own jamb or finishing the opening with drywall, plywood, wood, or another material |
| 4 1/2″ Jamb | Standard 2×4 wall |
| 6 1/2″ Jamb | Standard 2×6 wall |
| 9 1/4″ to 12 7/8″ Odd Jamb | Common for concrete basement and ICF walls* |
| 12 7/8″ to 18″ Odd Jamb | For extra-thick walls* |
| No Jamb Extension / Board Return | For box units; groove cover recommended* |
Odd jambs can be ordered to your specified wall depth, or supplied standard and trimmed on site.
Adding a PVC Jamb to an Existing Window
When adding a PVC jamb to an existing Century Glass Ltd. window, the arrowhead profile on the jamb snaps into the channel on the window frame.
If the window frame does not have a channel, the arrowhead can be trimmed from a board return and adhered directly to the window frame. This creates a solid attachment surface for the jamb extension.
Board returns are also a good choice when the opening will be finished with drywall, plywood, wood, or another custom material.

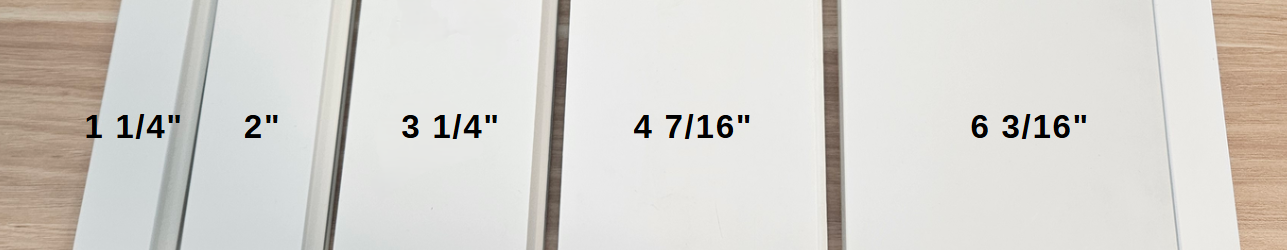

PVC Jamb Sizes
Our PVC jamb extensions are available in the following sizes:
| PVC Jamb Size | Finished Wall Depth |
| 1 1/4″ | Up to 4 1/2″ |
| 2″ | Up to 5 1/4″ |
| 3 1/4″ | Up to 6 1/2″ |
| 4 7/16″ | Up to 7 3/4″ |
| 6 3/16″ | Up to 9 3/4″ |
| 9 7/16″ | Up to 12 7/8″ |

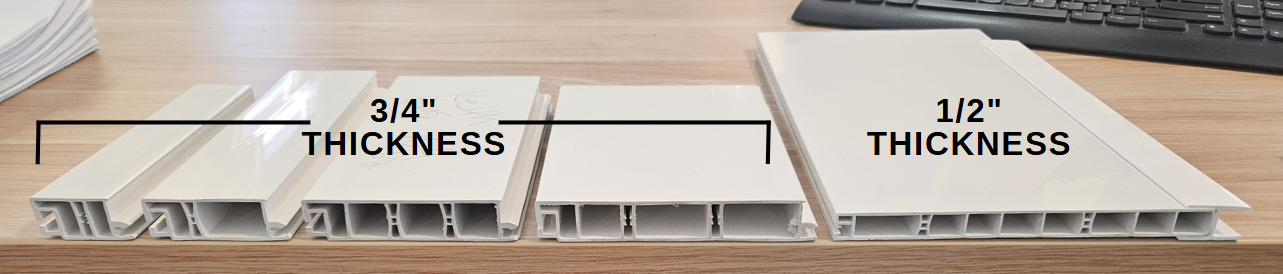

Jamb thickness:
- 1 1/4″ through 4 7/16″ jambs are 3/4″ thick
- 6 3/16″ jamb and larger are 1/2″ thick
For wall depths greater than 12 7/8″, two PVC jambs can be joined using an H-channel. Jambs can also be trimmed to achieve a custom finished wall depth.

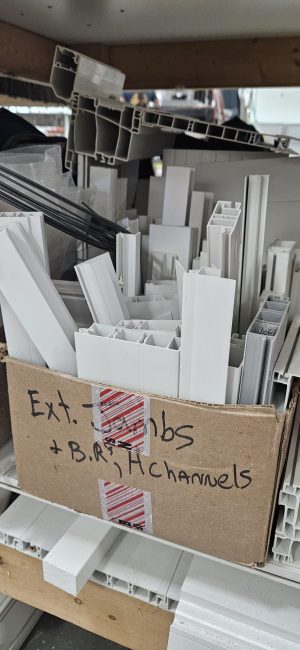

PVC Jamb & Channel Components
Available components include:
- 1/2″ H-channel
- 3/4″ H-channel
- 1/2″ board return
- 3/4″ board return
Jamb Supply Options
Contractors can choose how their PVC jambs are supplied:
- Full 16 ft. lengths – supplied for cutting and assembly on site
- 8 ft. lengths – half lengths which are easier to transport
- Cut to size – jambs cut to suit each individual window
- Pre-assembled jamb box – ready for installation
PVC Casing & Trim Options
We offer several casing and trim options depending on the desired finished appearance and installation method.
3″ PVC Profiled Casing
Our 3″ PVC profiled casing snaps into the groove on the outside edge of the PVC jamb, providing a clean, finished appearance. Use with rosettes or miter for your desired finished look. Comes in 16 foot lengths.
Groove Covers
When casing is not required, such as with some box-unit installations, a groove cover can be installed to conceal the casing groove and provide a neat finished edge.
3 3/8″ Rosette & Corner Key Set
A 3 3/8″ rosette with corner key, supplied as a set. The rosette and corner key are for use with our PVC casing, providing a finished trim detail at the corners.
3 1/2″ Vinyl-Wrapped Flat Casing
A 3 1/2″ flat casing with a vinyl-wrapped finish. This casing has no profile or groove and does not snap into the PVC jamb. Comes in 14 foot lengths.
Brickmolds
PVC brickmolds are available in lengths or welded, depending on your installation requirements.
Available profiles:
- 5907 – 1 1/2″ brickmold
- 5902 – 2″ brickmold
- 5919 – 2 1/4″ renovation brickmold with screw channel and snap-on cover
- 5990 – 3″ brickmold
- 5911 – 4″ brickmold
The 1 1/2″, 3″, and 4″ brickmold profiles are available with an optional nailing flange.
Sill Expander
The 5927 sill expander can be used to cover and finish gaps around the sill where a customer does not want to install casing.
It provides a clean transition and helps finish off installations where additional trim is required.
Quick Component Guide
| Component | Available Options / Sizes | Common Use |
|---|---|---|
| Board Return | 1/2″, 3/4″ | Custom jamb construction and drywall/plywood finishes |
| PVC Jamb | 1 1/4″–9 7/16″ | Extending window frames to finished wall depth |
| Odd Jamb | 9 1/4″–18″ | Concrete, ICF, and extra-thick walls |
| H-Channel | 1/2″, 3/4″ | Joining PVC jamb sections |
| Brickmold | 1 1/2″, 2″, 2 1/4″, 3″, 4″ | Exterior window trim |
| Sill Expander | 5927 | Covering gaps where casing is not desired |
| PVC Casing | 3″ profiled | Snap-in finished exterior trim |
| Rosette & Corner Key | 3 3/8″ | Finished corners with PH Tech jamb |
| Flat Casing | 3 1/2″ | Vinyl-wrapped flat trim; 14 ft. lengths |
| Groove Cover | — | Covering an unused casing groove |
Length availability: PVC jambs and PVC casing are available in 16 ft. lengths. Flat casing is available in 14 ft. lengths.
